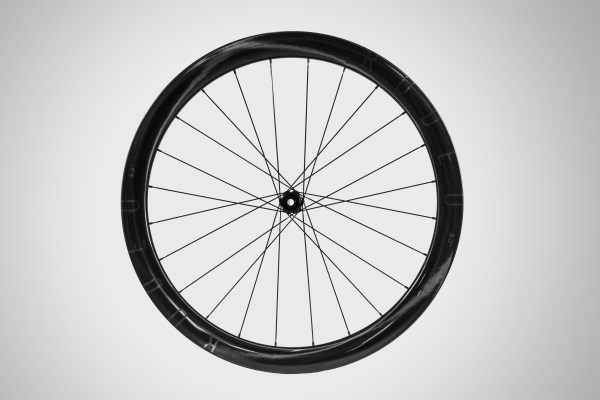

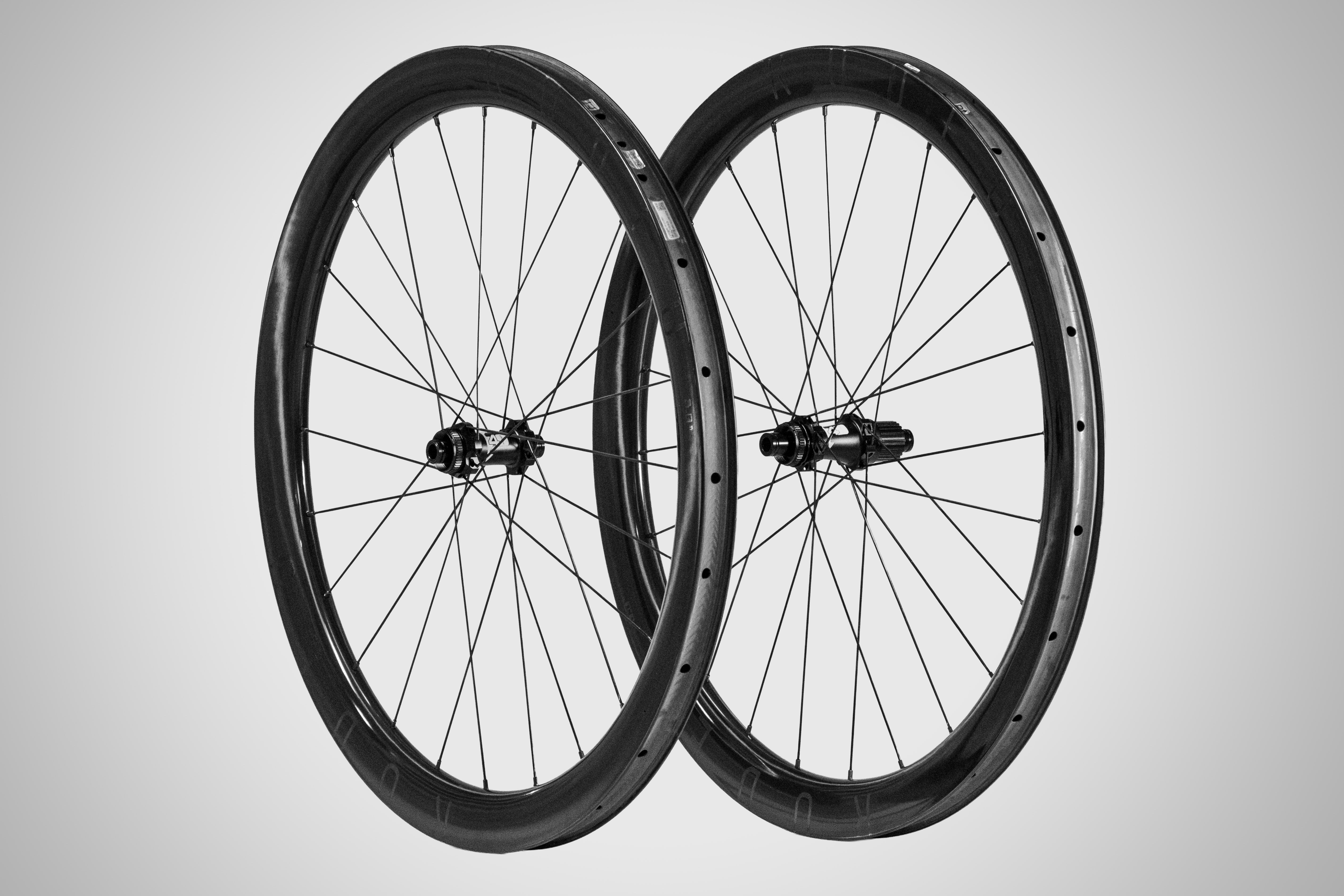

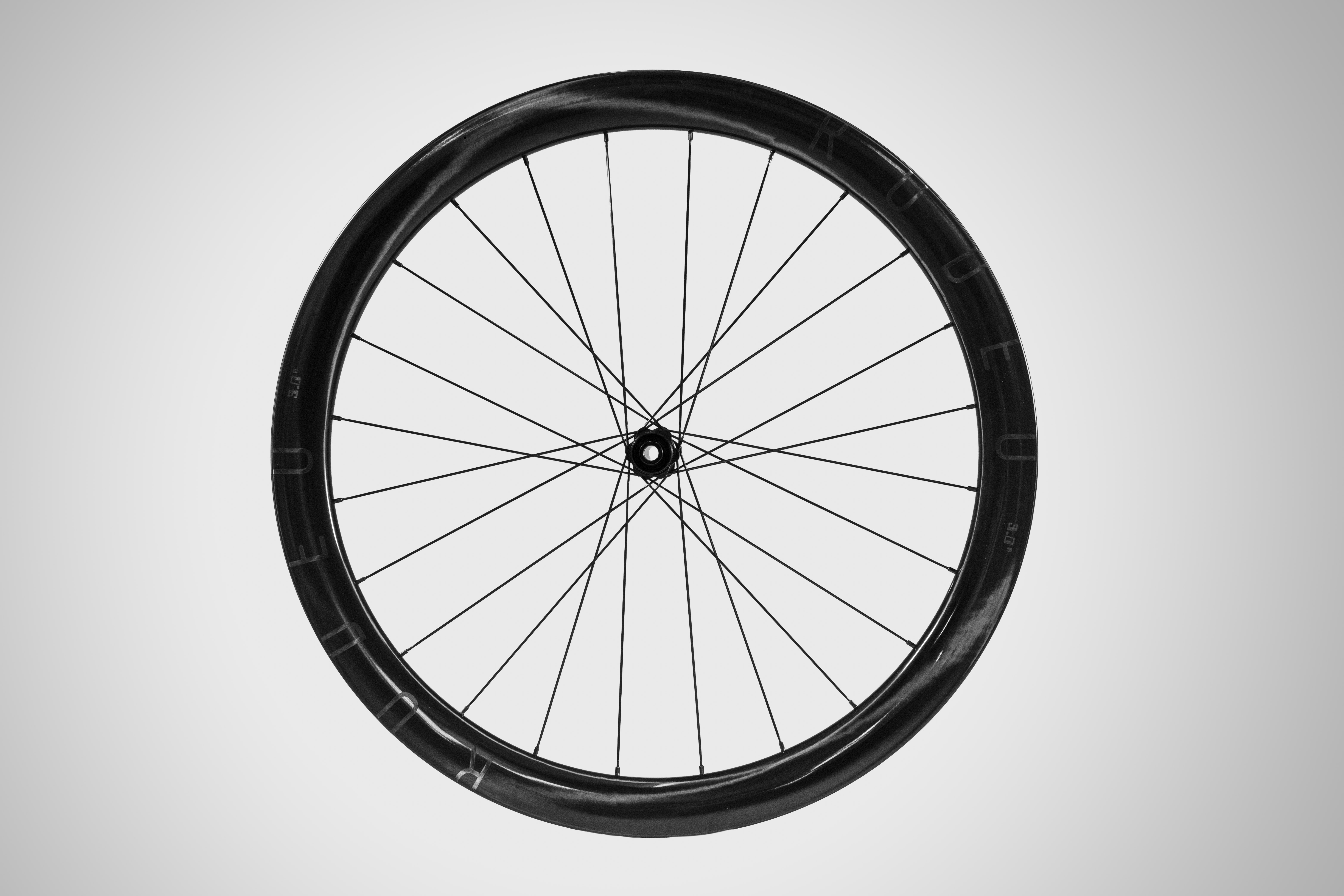

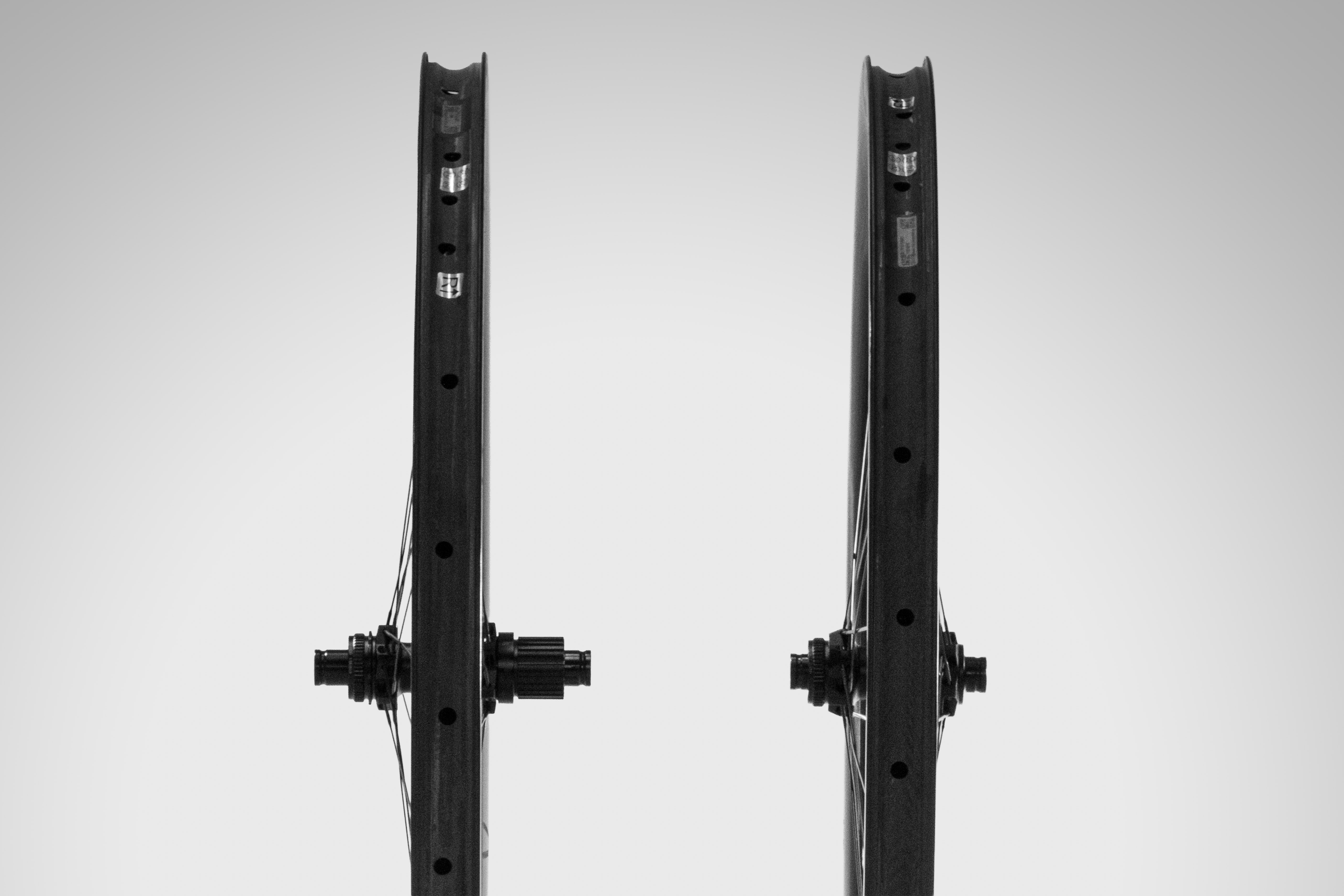

Rodeo 3.0R – 700c wheels
Price range: $525.00 through $2,350.00
The Rodeo 3.0 wheel family has grown. What started with our more adventure oriented 3.0X rim, has now added a 3.0 Race variant.

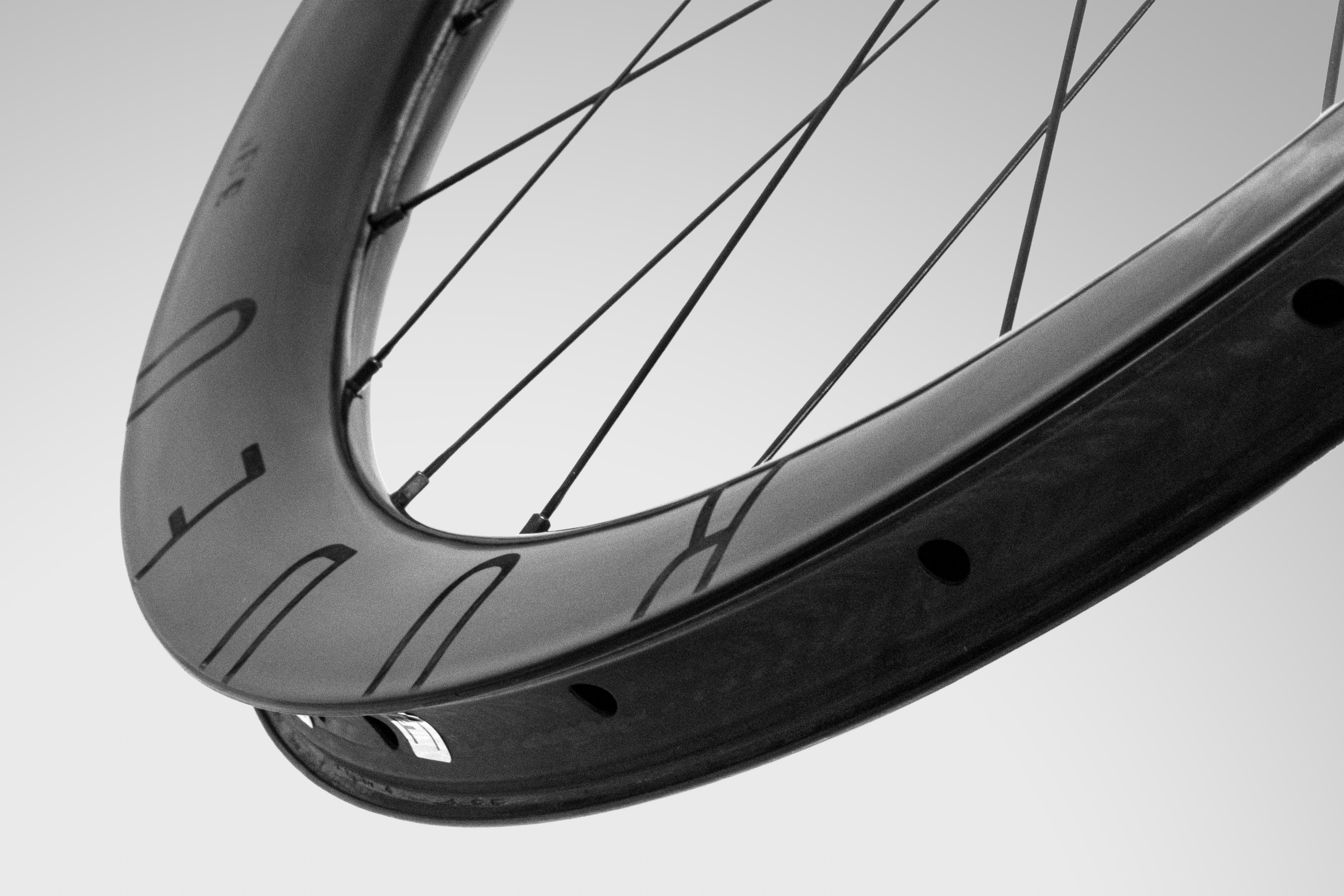

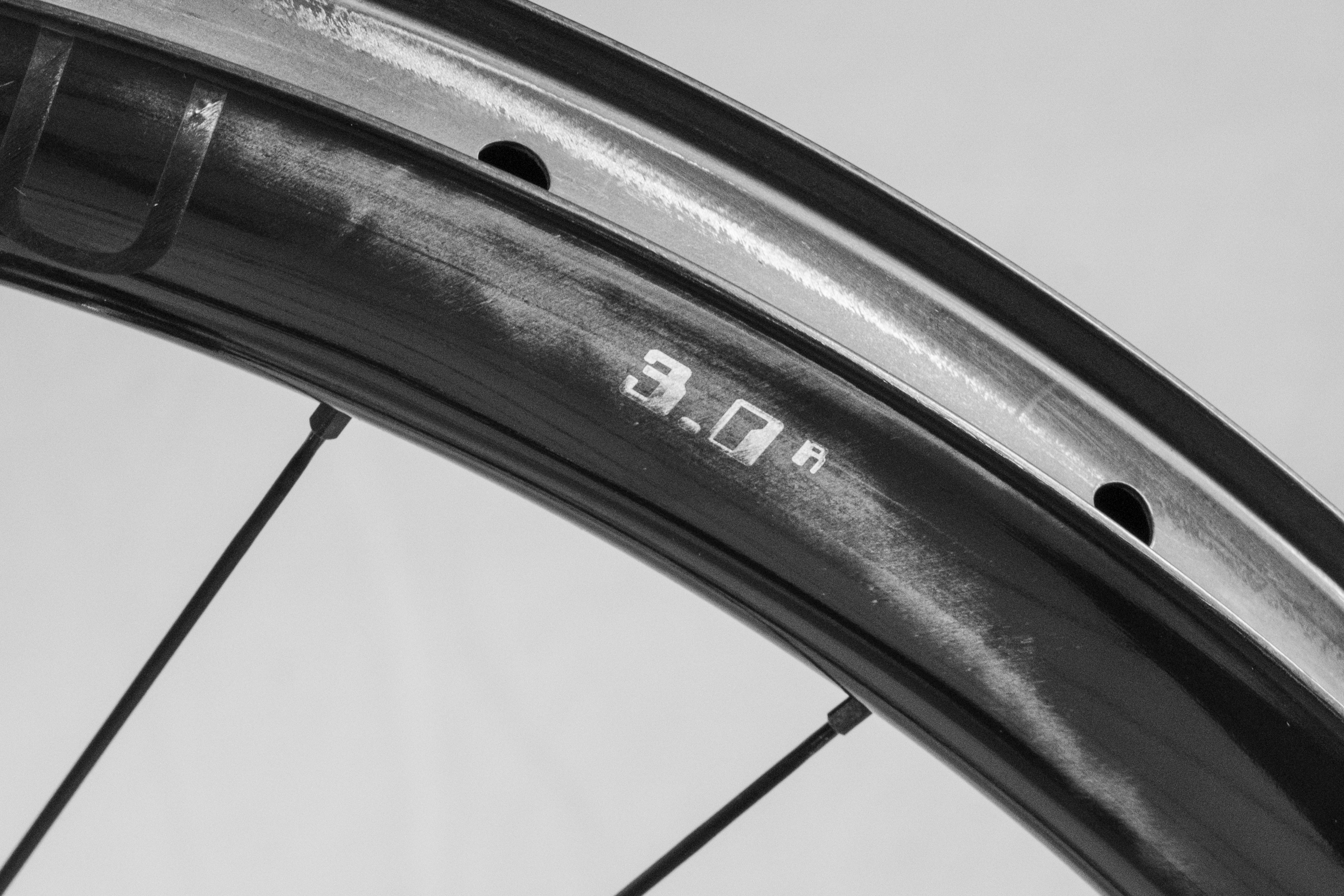

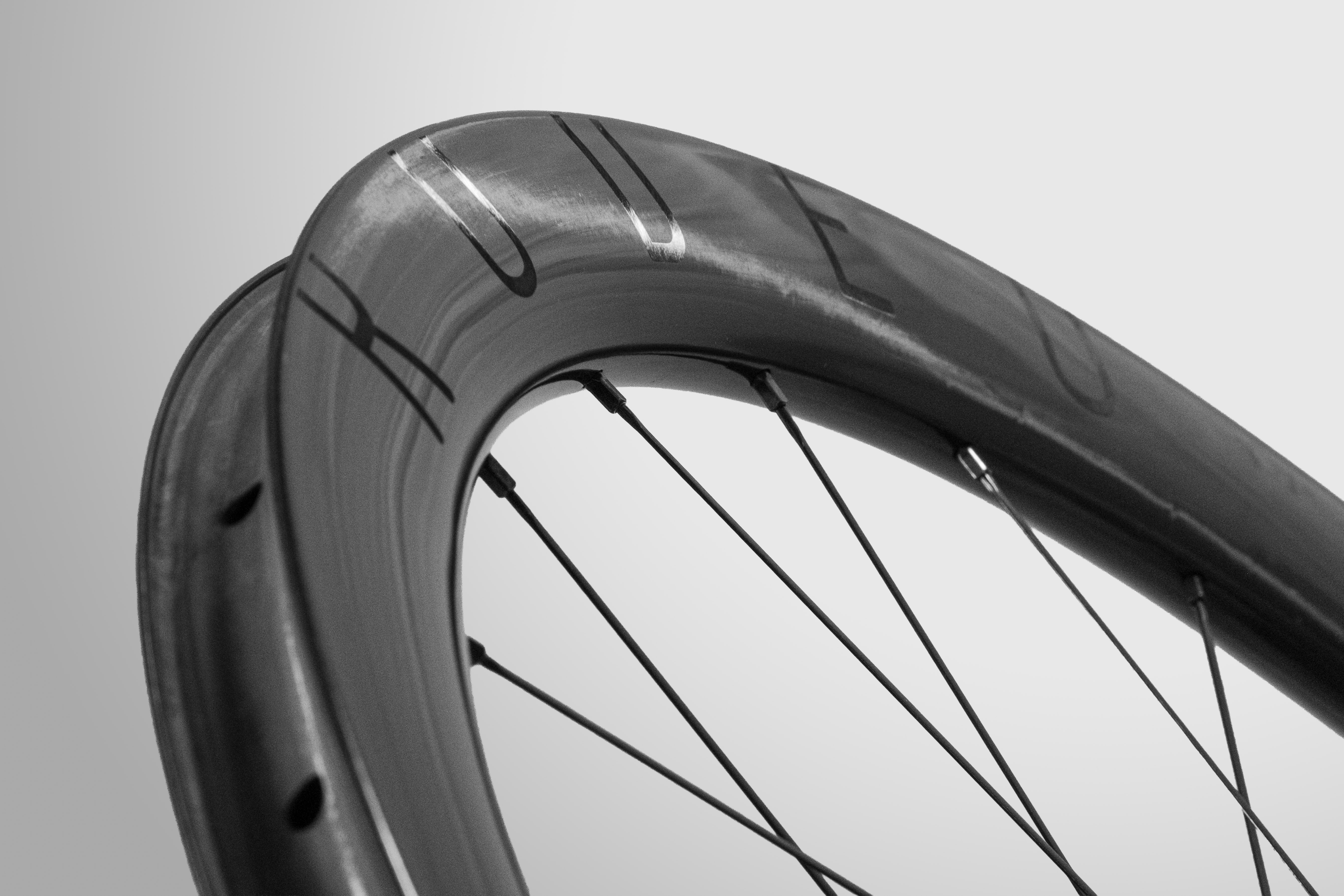

This new 3.0R rim and wheelset is our response to Rodeo riders and racers asking for a deeper and wider option. The “X” has earned a very strong reputation and track record for durability, impact resistance, and light weight, but people spending more time at high speed requested something that would cut through the wind better. Marginal gains, here we come.
Rodeo rims are proprietary products, developed by Rodeo with experts in composites and manufacturing. We use a bespoke carbon layup that integrates TeXtremeยฎ Innegra spread tow fiber, which has a much greater impact resistance than carbon fiber alone. In the unlikely event that you damage one of our rims, it’s far more likely that the rim will continue to hold up and get you to the end of your race or adventure.

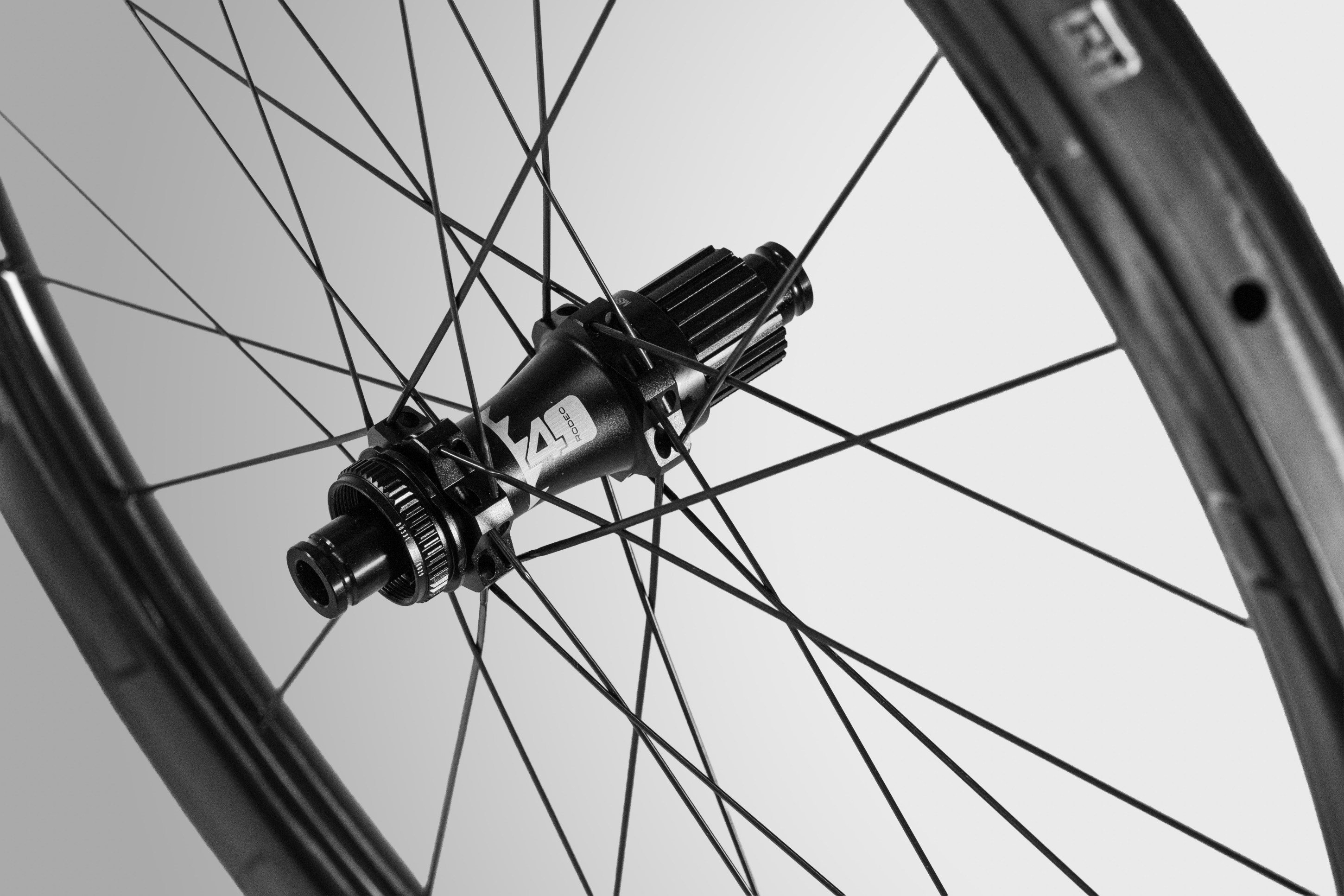

We didn’t stop with a new rim shape on the new 3.0R rim, we’ve also upgraded our lightweight hubset from a traditional pawl system to a stronger and more reliable star ratchet design that is compatible with DT swiss star ratchet internals. Say hello to the Rodeo 4.0 hubset.
Rodeo 3.0R wheels can be configured with our 4.0 hubs or any hubset of your chosing. If you don’t see what you’re after, just get in touch. We also offer our 3.0R rims as a stand-alone if you or your shop would prefer to lace them up yourselves.
Details and Features
Customer Reviews
X vs R, the choice is yours.
Rodeo 3.0X 700c
385g
/
Weight (Rim)
25.5mm
/
Rim Width (Internal)
36mm
/
Rim Depth
Laser etched graphics
/
Finish
Carbon + TeXtremeยฎ Innegra
/
Construction
170%
/
Relative Impact Strength
Rodeo 3.0R 700c
405g
/
Weight (Rim)
28mm
/
Rim Width (Internal)
48mm
/
Rim Depth
Laser etched graphics
/
Finish
Carbon + TeXtremeยฎ Innegra
/
Construction
140%
/
Relative impact strength
*impact strength measured against leading competing rim.
Proven
Rodeo 3.0R wheels have been tested relentlessly on both industry standard test benches and real life road, gravel, and ultra races.
If you are looking for a shallower rim option that puts a greater emphasis on impact strength, check out our 3.0X rim option.
Innegra TexTremeยฎ
Our 3.0 series rims use a proprietary layup which takes advantage of the unique performance benefits of TexTreme spread tow.
Superior Impact Resistance: The thinner, densely packed tape layers minimize micro-cracking and improve the material’s tolerance to damage and impact.
Maximum Strength & Stiffness: By keeping the fibers completely straight (crimp-free), the fibers carry loads far more efficiently than standard woven carbon. This allows manufacturers to achieve equal or greater structural strength while using less material.
Ultra-Lightweight: Flatter, thinner plies reduce the amount of excess resin (epoxy) required to bond the layers, significantly lowering the overall weight of the finished product.
Lighter weight across the system
1395g
24h / Cx-Ray
Sapim’s venerable bladed steel spokes pair with our 24 hole straight pull 4.0 hub to create an ultralight, aero build specification.
1295g
24h / Berd
Using the Rodeo 4.0 straight pull 24 hole hub and Berd Polylight spokes we’ve created the lightest possible Rodeo wheel, offering the most compliant ride and fastest acceleration, with no loss in strength.
Custom Builds
Chose Your Hub
If we can order it, we can build your wheels with it. If you would prefer to send your hubs in for a rebuild, we are able to accommodate almost any hub.
Built in USA
All custom spec and Berd spoke builds are built at Rodeo HQ in Denver, Colorado. All other builds are built by the masters at Onyx Racing, Minnesota, USA.
Spoke Selection
Chose your spokes to balance weight, aerodynamics, and budget. Berd spokes are the lightest, CX-Ray balance weight and aero. If you’ve got something more exotic in mind, just let us know!
Bespoke build ordering
We have made the most popular build options available via the standard dropdowns above, and those can be added to the cart and ordered easily.
For those that wish to order a completely bespoke wheelset configuration, please contact us at bikes@rodeo-labs.com for a custom quote, or feel free to give us a ring via the phone number listed at the bottom of this page.
Component Weights
Item
405g
/
Rodeo 3.0R rim
109g
/
Rodeo 4.0 24h Front Hub
217g
/
Rodeo 4.0 24h Rear Hub (XDR)
1.18g
/
Sapim SecureLock Brass Nipple
5.70g
/
Pillar Extra Butted 2.0/1.65
5.95g
/
Sapim Race Double Butted
4.41g
/
Sapim CX-Ray (average)
2.50g
/
Berd Polylight Spokes
Additional Hubs
104g
/
DT Swiss 240 Straight / 24h
192g
/
DT Swiss 240 Straight / 24h
138g
/
i9 1/1 Road Classic CL Front
282g
/
i9 1/1 Road Classic CL Rear
110g
/
i9 Solix Road Disc CL Front
223g
/
i9 Solix Road Disc CL Rear
156g
/
Onyx Vesper / 24h Front
369g
/
Onyx Vesper / 24h
Technical Details
Rider Weight Limit: 250lbs / 24h โ 280lbs / 28h
ERD: 548mm
External Width: 33.6mm
Internal width to hook faces: 28.0mm
Wheelsets are shipped with 30mm rim tape and 72mm tubeless valves installed.
Warranty. Rodeo 3.0R rims and wheel builds are covered by our standard Rodeo Labs Warranty.
Rodeo offers Crash Replacement pricing on wheelsets and rims at approximately 50% off retail pricing for items damaged in the line of duty.
Rodeo Family Discount
As a thank you to every Rodeo Labs bike owner, we offer Rodeo wheels with a $300 family discount. We must verify bike ownership before applying discount, and you may email us to request the code at bikes@rodeo-labs.com
Tested and proven
By the time you ride a Rodeo Labs product, including our wheels, it’s been tested in a wide range of conditions, and for untold thousands of miles.
